Some Dingo Information

Mike
Mike

November 15th, 2014, 4:37 am #1




Tamiya 1/48 British Armoured Scout Car Dingo MK II 32581


Information

Variants:
Mk I: Original model with four-wheel steering and sliding roof.
Mk IA: Same as the MK I but with a folding roof.
Mk IB: reversed engine cooling air flow and revised the armour grilles for the radiator,
Mk II: Same as the MK IB but with front wheel steering only and revision of the lighting equipment


Maybe one of the AM guys will produce a stowage and radio set for the Dingo.








Restored Dingo Interior:




MK I

IWM Photos:

MH 3732:     Link:  http://www.iwm.org.uk/collections/item/object/205206701

MH 3733:     Link:  http://www.iwm.org.uk/collections/item/object/205206699

MH 3734:     Link:  http://www.iwm.org.uk/collections/item/object/205206700


MK I with Bren MG and a lakeman mounting:






Bren gun sources:
Tamiya 32516 British universal Carrier MK II (*and radio)
Tamiya 32526 British Infantry Set (*and helmets)


Only ONE Marking Option

F48038     2nd Irish Guards, Guards Armoured Divison

These markings are found on this restored Dingo privately owned in the USA.




Another Decal source:

Peddinghaus EP1449 Englsiche Panzer und Fahrzeugmarkierungen 1940 / English tanks & vehicle markings 1940a



4th RNF Dingoes
In France 1940, the 4th Battalion Royal Northumberland Fusiliers (RNF) was the recce battalion of the 50th (Northumbrian) Division.
This battalion was equiped with Norton motorcycle combinations but each company (HQ, X, Y & Z) had a platoon of 10-11 Dingo scout cars.
The scout car platoons were suppose to provide AA support for each company in the battalion.


This is a line of 4th RNF Dingoes and the last one is named "FireFly".
I am not able to make out the name of the 4th car from the end which has 5 letters.
My guess the WD number of the last Dingo is F9489. The location and date are unknown.



Some possible Dingo WD Numbers:

F9377, F9496, F9546, F9584, F9639, F9773, F9952, F9982


The battalion left Southampton UK on 21 January 1940 and reached Cherbourg port in France the next day.
Then it moved by rail to a billeting area between Le Mans and Alencon.
On 26 February, the battalion commenced a road march which terminated on the 29th at Fontaine-Bonneleau, south of Beauvais.

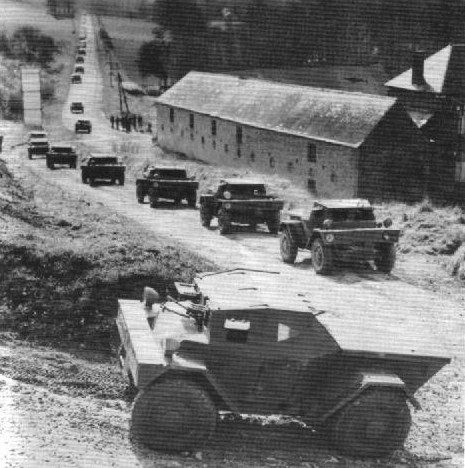

Here are 4th RNF Dingoes just north of Fontaine-Bonneleau (on D106).

On the closest Dingo, the driver's side view port is open and the sunlight is reflecting off the cover.
On the hull side, there is a white and red pennion which could be a unit insignia or command marking.
Also note that it has a Bren gun mounted.





A 4th RNF Dingo named "Fury" near Fontaine-Bonneleau France on 20 March 1940.

This is my close up of IWM photo F 3220:     Link:  http://www.iwm.org.uk/collections/item/object/205204890

The white disc on the rear is said to be a gas detection disc.
This Dingo appears to be moving away from the photographer. Note the tires are rotating.





The 4th RNF remained near Fontaine-Bonneleau until the 29th March, when they moved to La Bassee.
At the end of April a further move forward was made to Lannoy, south east of Roubaix on the Belgian frontier.
On 10 May 1940. the battalion crossed the border into Belgium at Lannoy with the 4th RNF leading the advance.

This is a 4th RNF Dingo seen in Herseaux Belgium on May 10.



IWM photo F 4344 is one of the battalions Norton motorcycle combinations.:     Link:  http://www.iwm.org.uk/collections/item/object/205204932


This is my close up. Note the BEF white square on the front storage bin.
The number 18 (RNF) appears to be painted on a plate and attached to the front bin.





This is a 4th RNF Dingo named "Furious" near Duisans (just west of Arras) on 22 May 1940.
That is the day after the BEF 2 prong counterattack against Rommel's 7th Panzer division's right flank around Arras.
The No. 12 scout car platoon of the 4th RNF Coy Z with the 7th RTR supported the 8th Durham Light Infantry (DLI).
This platoon lost 6 out of its 11 cars during the attack.



This is a close up of "Furious". Barely visible is the white/red pennion and WD number on the side.
Note the number 18 on the rear fender and the tire treads.




Here is a knocked out Dingo near Achicourt (just south of Arras)
The No. 11 scout car platoon of the 4th RNF Coy Y with the 4th RTR supported the 6th DLI.
The 6th DLI retreated back to Achicourt and the 4th RNF attempted to provide a protective screen taking heavy losses.
The scout car platoon lost all its cars during the attack.




Other Dingoes

This Dingo belonged to the HQ squadron of the 3rd Armoured Brigade and 5th RTR. This is my close up of IWM photo 4600F.
The caption states it is moving through Luisnoy prior to going into action on 30 May 1940.
I believe that is incorrect since the DunKirk evacuation had begun on May 27th so it is more likely withdrawing towards the coast.
That officer is standing on the sidewalk with this Dingo passing by him.
Note the WD Number F9420 on the rear and the tire tread.





This is a close up of a captured 1st Armoured Division Dingo named "HOOD".
The name beginning with "H" indicates it probably belonged to a HQ squadron.
Dangling off the front is the lid of the front stowage bin. Note the steering rod of the rear wheel.




Another abandoned Dingo at Calais:



Here is my close up. Note the front stowage bin lid is left open.




Desert Dingoes

This is my close up of IWM photo E 11092:     Link:  http://www.iwm.org.uk/collections/item/object/205203769

A Dingo of the 5th RTR, 4th Armoured Brigade, 28 April 1942
Note that the frame of the open gunners port is not painted with the camo color.





Royal Engineers in a Dingo on their way to blow up an abandoned enemy tank, 14 March 1943.
Tamiya should have included markings for this option. Note the Marston plate attached to the front.



IWM photo NA 1120:     Link:   http://www.iwm.org.uk/collections/item/object/205204155



Marston plate source: Aber 48A24 PSP (Pierced steel planks) set


Another desert photo:

IWM photo E 13262:     Link:  Http://www.iwm.org.uk/collections/item/object/205203825


Dingo in Korea

This Dingo named "HAMLET" of the 8th King's Royal Irish Hussars is waiting for orders during the retreat from Seoul, December 1950.
The Cromwell in the background is from the reconnaissance troop of the 8th KRIH.
Note the color dividing line on the side of the Dingo.




Quote
Share

Joined: April 19th, 2005, 6:29 am

November 15th, 2014, 4:55 am #2

Fantastic! Love those 4th RNF machines. Thanks for posting these helpful photos.

Dave
