Joined: October 9th, 2014, 8:58 pm

June 6th, 2018, 2:19 am #11

I'm planning on building myself a belt grinder this summer, I'd ask if you want to sell that frame, but I fear that shipping would price it to high to be worthwhile.
Quote
Like
Share

Joined: September 16th, 2014, 7:01 am

June 6th, 2018, 11:53 pm #12

You only don't need it right now - the work will show up for it again.
Quote
Like
Share

Joined: June 28th, 2017, 11:03 pm

June 7th, 2018, 5:05 am #13

BruceBergman wrote: You only don't need it right now - the work will show up for it again.
Well, Doc DID say he lucked into a complete grinder of this style that only needed a few minor tweaks to make usable...
Quote
Like
Share

Joined: January 1st, 1970, 12:00 am

June 8th, 2018, 9:29 pm #14

BruceBergman wrote:You only don't need it right now - the work will show up for it again.
-You misunderstand: I "don't need it anymore" because I bought another, more complete one. 😁

And on that note, I made a deal with a buddy of mine, who will buy the homebrew unit, but I have to finish it first. So this project is still ongoing, it's just lost a bit of that urgency. 😋

Doc.
Quote
Like
Share

Joined: January 1st, 1970, 12:00 am

June 20th, 2018, 7:39 am #15

Bringing this one back up for the moment, I'd ordered a VFD for this grinder, somewhat ironically shortly before finding the new grinder, and it came in a few days after bought the other one.

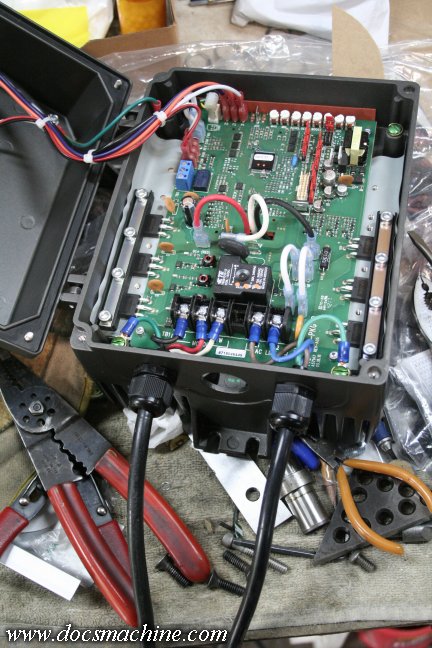

It's a sealed housing, actually washdown-tight, which is commonly used for this kind of grinder, in order to keep dust- potentially conductive dust- out of the electronics. As such, I wanted some dust-tight cable connectors, and had to order some, as nothing like these were available here in town.



I got the ends properly terminated and everything solidly connected.

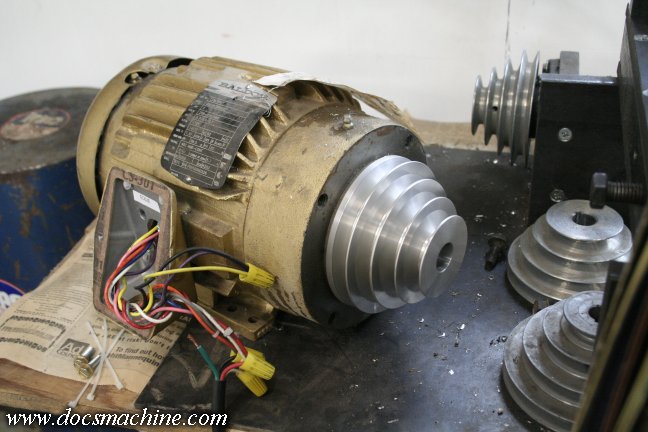

I then opened up the Baldor motor, which was basically new-old-stock, having been on a shelf at the local oil refinery for probably 20 years, before they threw it away for being the wrong voltage. And then I've had it for nearly a decade myself, and this is likely the first time it's been connected to anything since it was tested at the factory.

How'd it do? Runs like a champ, smooth and quiet, and I even got the wiring right the first time so it turns the correct direction. You can't tell, but it's turning in this photo. :D

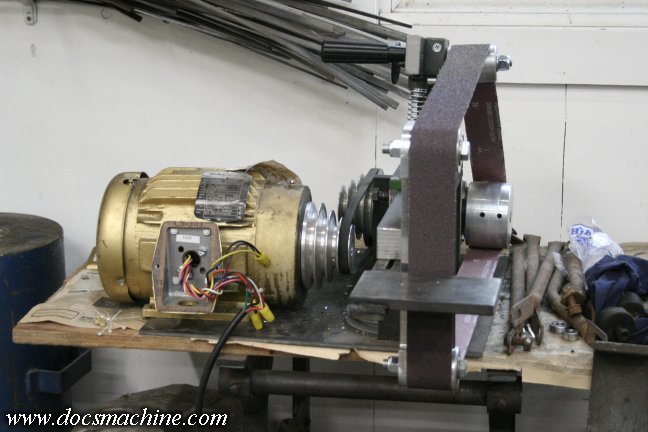

So I then checked my stash, found a belt of about the right size, slipped it on, and turned the grinder itself for the first time ever:



And it, too, worked great! The motor, of course, is not bolted to anything, so I had to hold it im place while it was running- and i couldn't do that and get a picture, so no, it's not running in that photo. :)

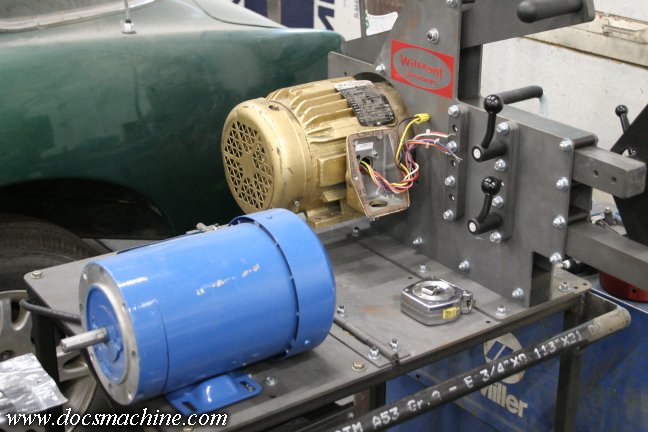

But now I have to figure out how to properly mount that motor. I have a couple of ideas, including one that will be kind of a 'radical departure' change, but at the moment, this machine has dropped a bit in priority, and I need to noodle the mods a bit more before I start cutting.

Doc.
