standard block

standard block

Joined: November 28th, 2003, 9:26 am

August 24th, 2011, 2:10 pm #1

well we found the limit to one standard block 7.47 @ 179 mph full grout blown 671 . cracked no 2 main thru oil galley toasted the crank so got another block ready to go for this season and waiting for tods block so i can lean on it
Quote
Like
Share

Joined: February 13th, 2006, 4:59 am

August 24th, 2011, 3:42 pm #2

What do you estimate the hp is on that?what's your combo? I'm definately impressed good job,that is fast. Sorry to hear it came apart ofcourse!
Quote
Like
Share

Joined: December 16th, 2003, 1:59 am

August 24th, 2011, 4:15 pm #3

that's what i'm afraid of... what's your front hub/drive set up?

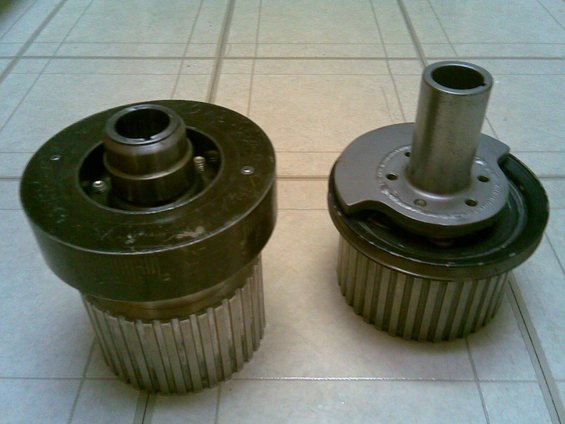

i'm using a steel hub that is essentially an external balance weight that holds the bottom 1/2" pitch
pulley, on the right in this pic



there'll be phantoms, there'll be fires on the road... and the white man dancing
Quote
Like
Share

Joined: January 1st, 1970, 12:00 am

August 24th, 2011, 4:34 pm #4

Like a dirt track oil pump drive that drives off of the input shaft on the tranny. that way the load can be carried across the rear main and the transmission bearing.

good luck and keep boosting those Clevos..
-blizz

Never Pet a burning dog, and don't fry bacon naked... Gary Busey on Celeb Apprentice.
Quote
Like
Share

Joined: October 1st, 2004, 8:05 pm

August 24th, 2011, 4:59 pm #5

Flywheel driven Vortech Supercharger and fuel injection.



-G
____________________________________________________________

Pantera Photos | 351C Historic Information | 351C Technical Information

If you use a 351C 4V powered vehicle for a grocery getter ... the eggs aren't going to make it home!
Quote
Like
Share

Joined: June 21st, 2005, 2:43 am

August 24th, 2011, 5:07 pm #6

well we found the limit to one standard block 7.47 @ 179 mph full grout blown 671 . cracked no 2 main thru oil galley toasted the crank so got another block ready to go for this season and waiting for tods block so i can lean on it
Maybe one of these days our wait will be over.

What kind of main caps were you using?

Tod
Quote
Like
Share

Joined: May 11th, 2008, 1:15 am

August 24th, 2011, 10:43 pm #7

Flywheel driven Vortech Supercharger and fuel injection.



-G
____________________________________________________________

Pantera Photos | 351C Historic Information | 351C Technical Information

If you use a 351C 4V powered vehicle for a grocery getter ... the eggs aren't going to make it home!
crafty lil bugger!!!! N/M
Quote
Like
Share

Joined: November 28th, 2003, 9:26 am

August 25th, 2011, 1:49 am #8

that's what i'm afraid of... what's your front hub/drive set up?

i'm using a steel hub that is essentially an external balance weight that holds the bottom 1/2" pitch
pulley, on the right in this pic



there'll be phantoms, there'll be fires on the road... and the white man dancing
chromemolly blower hub internally balanced 8mm pulleys
Quote
Like
Share

Joined: November 28th, 2003, 9:26 am

August 25th, 2011, 1:52 am #9

Maybe one of these days our wait will be over.

What kind of main caps were you using?

Tod
stock two bolt with girdle there is still a heap left in it as i pulled the pistons and theres no gold tinge at all so might just run 7.6 7.7 till i get new block i do have a pillow block but dont want to grout it
Quote
Like
Share

Joined: June 21st, 2005, 2:43 am

August 25th, 2011, 12:37 pm #10

That gives me hope that my block will fare well under similar circumstances. I am working to ship 3 aluminum blocks right now, and waiting for cores for more iron samples.

My cast ductile caps should hold up well (120,000 tensile) and I am looking into machining 90,000 tensile ductile billet caps too.

After MME dynoed the iron blocks I have every confidence in the product design up until now. Hopefully, there will never be any calls telling me someone found the weakness in the design.

It is slow going but slow is better than nothing.

Tod
